SCT040H120G3-7 Datasheet, Mosfet, STMicroelectronics

SCT040H120G3-7 Features

  • Mosfet Order code VDS RDS(on) typ. ID SCT040H120G3-7 1200 V 40 mΩ 40 A
  • Very fast and robust intrinsic body diode
  • Very low RDS(on) over the entire temperature ran

PDF File Details

Part number:

SCT040H120G3-7

Manufacturer:

STMicroelectronics ↗

File Size:

367.52kb

Download:

📄 Datasheet

Description:

Silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

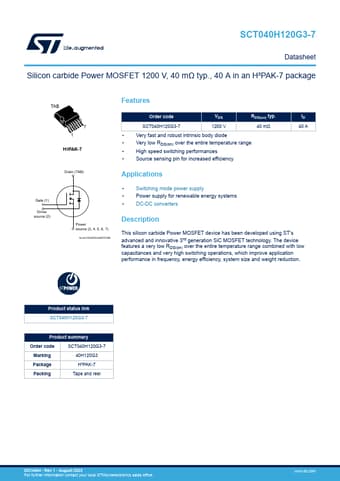

Datasheet Preview: SCT040H120G3-7 📥 Download PDF (367.52kb)
Page 2 of SCT040H120G3-7 Page 3 of SCT040H120G3-7

SCT040H120G3-7 Application

  • Applications
  • Switching mode power supply
  • Power supply for renewable energy systems
  • DC-DC converters Description Thi
