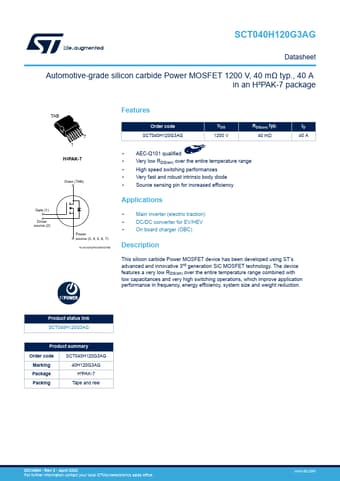

SCT040H120G3AG Datasheet, Mosfet, STMicroelectronics

SCT040H120G3AG Features

• Mosfet Order code SCT040H120G3AG VDS 1200 V RDS(on) typ. 40 mΩ ID 40 A
• AEC-Q101 qualified
• Very low RDS(on) over the entire temperature range
• High speed swi

PDF File Details

Part number:

SCT040H120G3AG

Manufacturer:

STMicroelectronics ↗

File Size:

504.16kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

SCT040H120G3AG Application

• Applications
• Main inverter (electric traction)
• DC/DC converter for EV/HEV
• On board charger (OBC) Description This s
