SCT30N120 Datasheet, Mosfet, STMicroelectronics

SCT30N120 Features

  • Mosfet
  • Very tight variation of on-resistance vs. temperature
  • Very high operating junction temperature capability (TJ = 200 °C)
  • Very fast and robust intrinsic body

PDF File Details

Part number:

SCT30N120

Manufacturer:

STMicroelectronics ↗

File Size:

785.31kb

Download:

📄 Datasheet

Description:

Silicon carbide power mosfet. This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap materials. This results

Datasheet Preview: SCT30N120 📥 Download PDF (785.31kb)

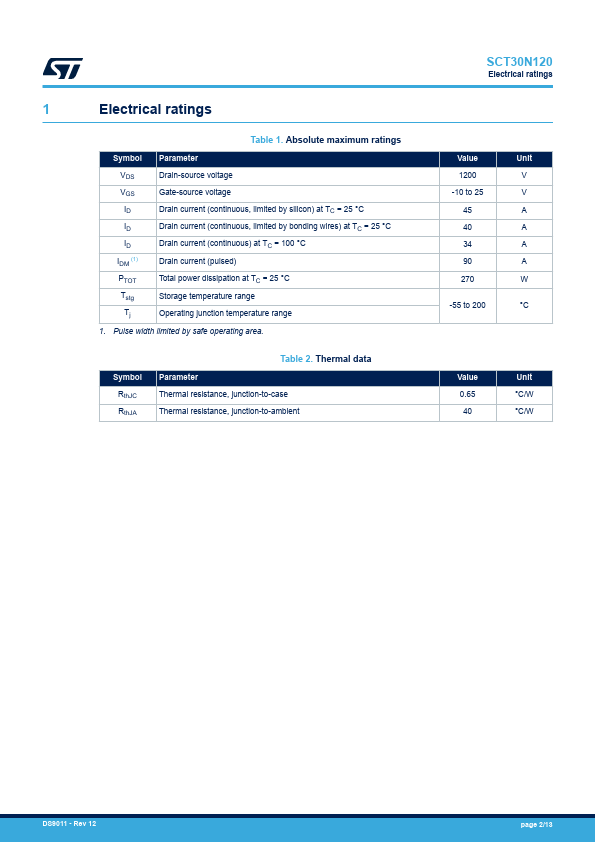

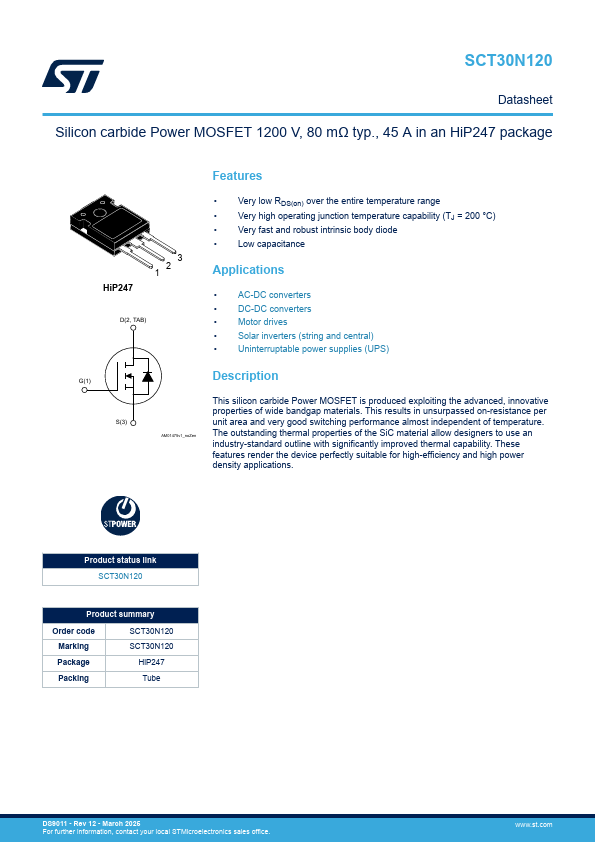

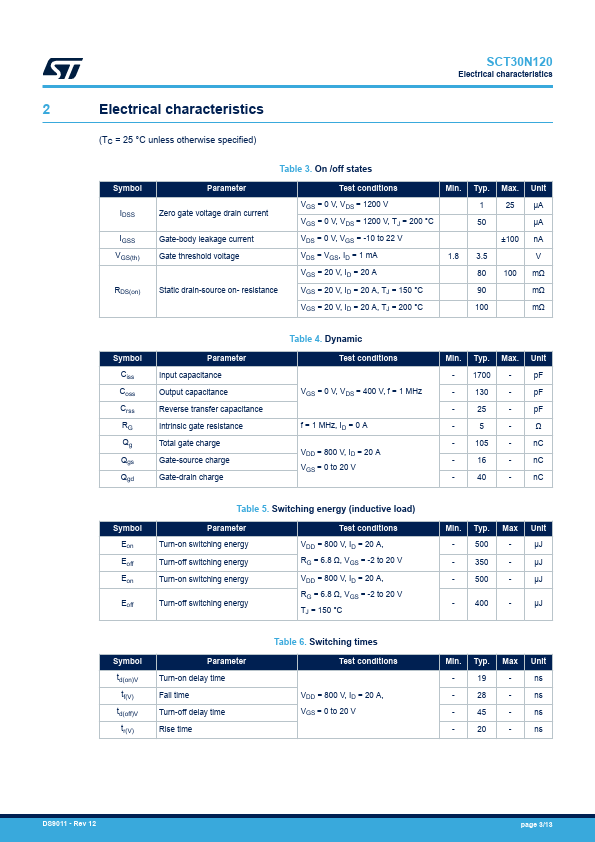

Page 2 of SCT30N120 Page 3 of SCT30N120

SCT30N120 Application

  • Applications Figure 1: Internal schematic diagram
  • Solar inverters, UPS
  • Motor drives
  • High voltage DC-DC converters
