SCTH100N120G2-AG

Automotive-grade silicon carbide Power MOSFET

STMicroelectronics

SCTH100N120G2-AG Features

* Order code SCTH100N120G2-AG VDS 1200 V RDS(on)typ. 30 mΩ ID 75 A

* AEC-Q101 qualified

* High speed switching performance

* Very fast and robust intrinsic body diode

* Low capacitance Applications

* Traction inverters

* DC-DC converters

* So

SCTH100N120G2-AG Datasheet (434.83 KB)

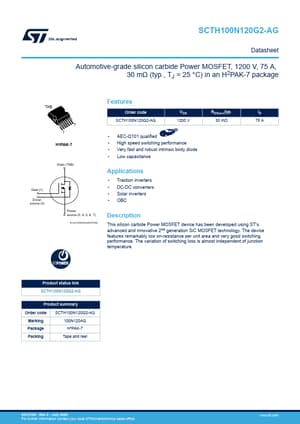

SCTH100N120G2-AG Datasheet Preview — Preview of SCTH100N120G2-AG PDF

Datasheet Details

Part number:

SCTH100N120G2-AG

Manufacturer:

STMicroelectronics ↗

File Size:

434.83 KB

Description:

Automotive-grade silicon carbide power mosfet.
SCTH100N120G2-AG Datasheet Automotive-grade silicon carbide Power MOSFET, 1200 V, 75 A, 30 mΩ (typ., TJ = 25 °C) in an H2PAK-7 package TAB 7 1 H2PAK-.
