STF17NF25 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF17NF25 Features

* Type STD17NF25 STI17NF25 STF17NF25 STP17NF25 www.DataSheet4U.com

* VDSS 250V 250V 250V 250V RDS(on) < 0.165Ω < 0.165Ω < 0.165Ω < 0.165Ω ID 17A 17A 17A 17A PTOT 90W 3 90W 25W 90W TO-220 1 2 3 12 I²PAK Low gate charge 100% avalanche tested Exceptional dv/dt capability 1 2 3

STF17NF25 General Description

This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency isolated DC-DC converters. Internal schematic diagram Applications .

STF17NF25 Datasheet (528.66 KB)

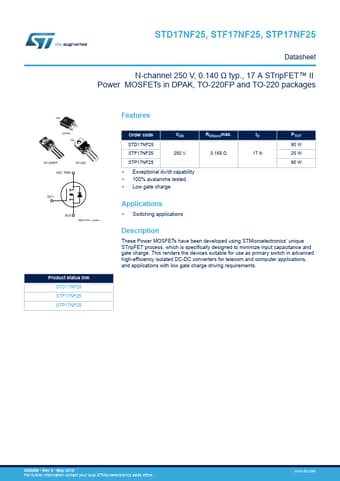

STF17NF25 Datasheet Preview — Preview of STF17NF25 PDF

Datasheet Details

Part number:

STF17NF25

Manufacturer:

STMicroelectronics ↗

File Size:

528.66 KB

Description:

N-channel power mosfet.
STI17NF25 - STD17NF25 STF17NF25 - STP17NF25 N-channel 250V - 0.14Ω - 17A - TO-220/FP - DPAK - I2PAK Low gate charge STripFET™ II Power MOSFET General .
