STF19NM50N N-channel Power MOSFETs

STF19NM50N Description

STF19NM50N, STP19NM50N, STW19NM50N N-channel 500 V, 0.2 Ω typ., 14 A MDmesh™ II Power MOSFETs in TO-220FP, TO-220 and TO-247 packages Datasheet - prod.
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology.

STF19NM50N Features

* Order codes VDS @ TJmax STF19NM50N STP19NM50N 550 V STW19NM50N RDS(on) max 0.25 Ω ID 14 A
* 100% avalanche tested
* Low input capacitance and gate charge

STF19NM50N Applications

* Switching applications ' 7$%

📥 Download Datasheet

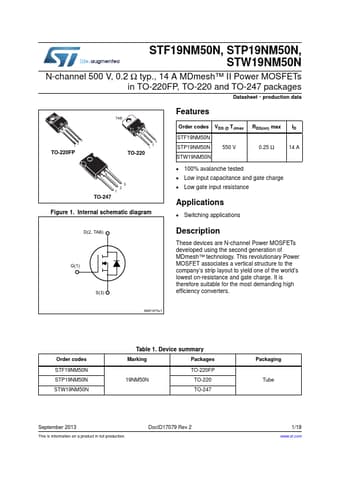

Preview of STF19NM50N PDF
datasheet Preview Page 2 datasheet Preview Page 3
