STF33N60M2 Datasheet - STMicroelectronics

N-Channel Power MOSFET

STF33N60M2 Features

* Order codes VDS @ TJmax RDS(on) max. ID STF33N60M2 STI33N60M2 STP33N60M2 650 V 0.125 Ω 26 A STW33N60M2

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Package TO-220FP I²PAK TO-220 TO-247

STF33N60M2 General Description

These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converters.

STF33N60M2 Datasheet (679.43 KB)

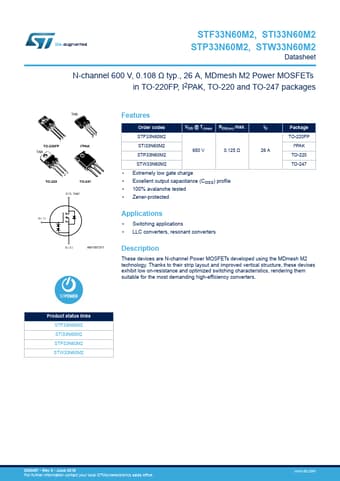

STF33N60M2 Datasheet Preview — Preview of STF33N60M2 PDF

Datasheet Details

Part number:

STF33N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

679.43 KB

Description:

N-channel power mosfet.
STF33N60M2, STI33N60M2 STP33N60M2, STW33N60M2 Datasheet N-channel 600 V, 0.108 Ω typ., 26 A, MDmesh M2 Power MOSFETs in TO‑220FP, I2PAK, TO-220 and TO.
