STF33N65M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF33N65M2 Features

* Order codes STB33N65M2 STF33N65M2 STP33N65M2 STI33N65M2 VDS RDS(on) max ID 650 V 0.14 Ω 24 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Figure 1. Internal schematic diagram , TAB Applicat

STF33N65M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. AM.

STF33N65M2 Datasheet (366.50 KB)

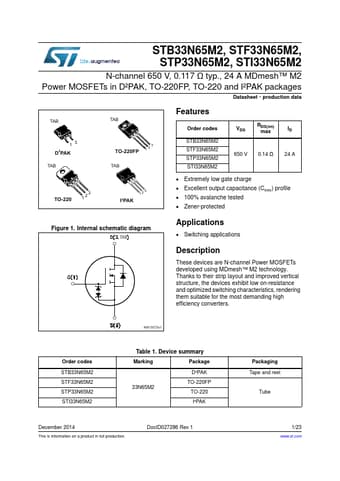

STF33N65M2 Datasheet Preview — Preview of STF33N65M2 PDF

Datasheet Details

Part number:

STF33N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

366.50 KB

Description:

N-channel power mosfet.
STB33N65M2, STF33N65M2, STP33N65M2, STI33N65M2 N-channel 650 V, 0.117 Ω typ., 24 A MDmesh™ M2 Power MOSFETs in D²PAK, TO-220FP, TO-220 and I²PAK packa.
