STGF5H60DF, STGB5H60DF 600V 5A IGBT

STGF5H60DF Description

STGB5H60DF, STGD5H60DF STGF5H60DF, STGP5H60DF Datasheet Trench gate field-stop 600 V, 5 A high speed H series IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB .
These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure.

STGF5H60DF Features

* High-speed switching
* Tight parameter distribution
* Safe paralleling
* Low thermal resistance
* Short-circuit rated

STGF5H60DF Applications

* Motor control
* UPS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STGF5H60DF, STGB5H60DF. Please refer to the document for exact specifications by model.

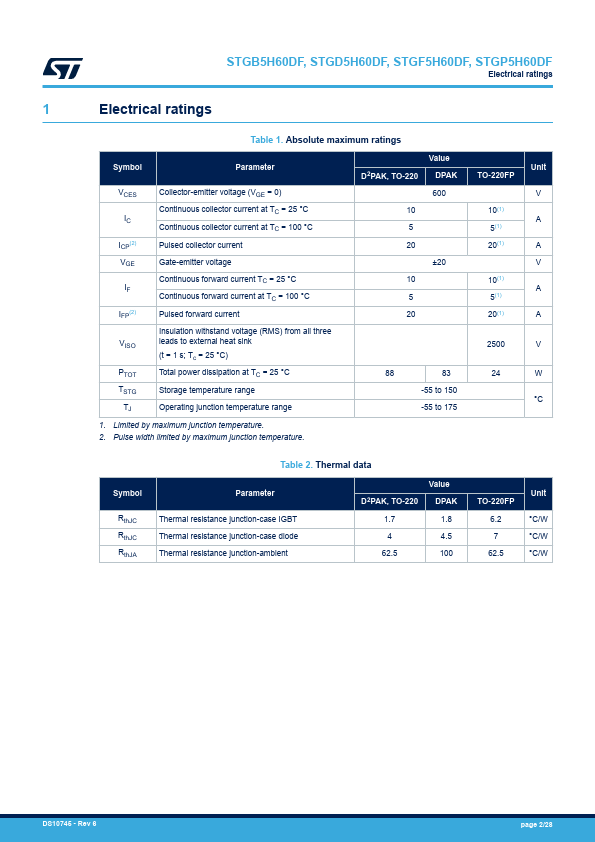

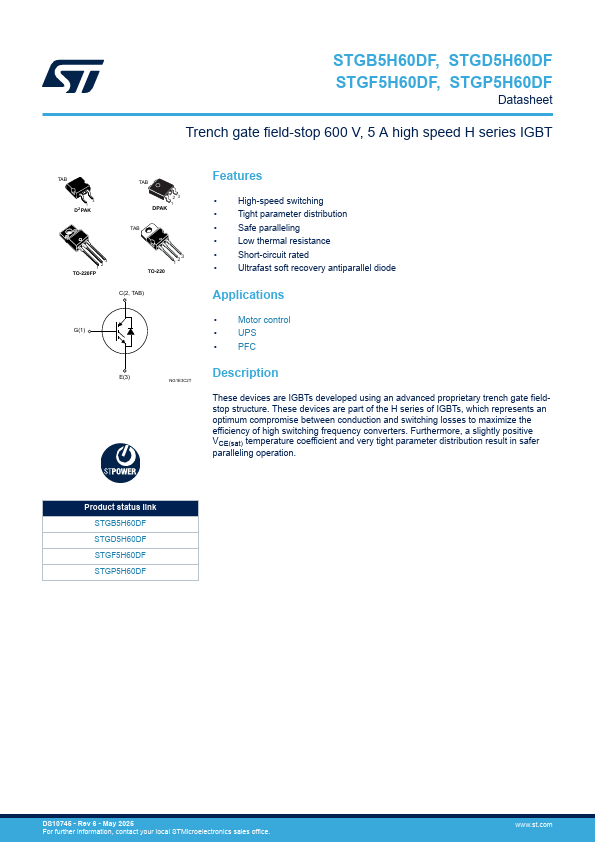

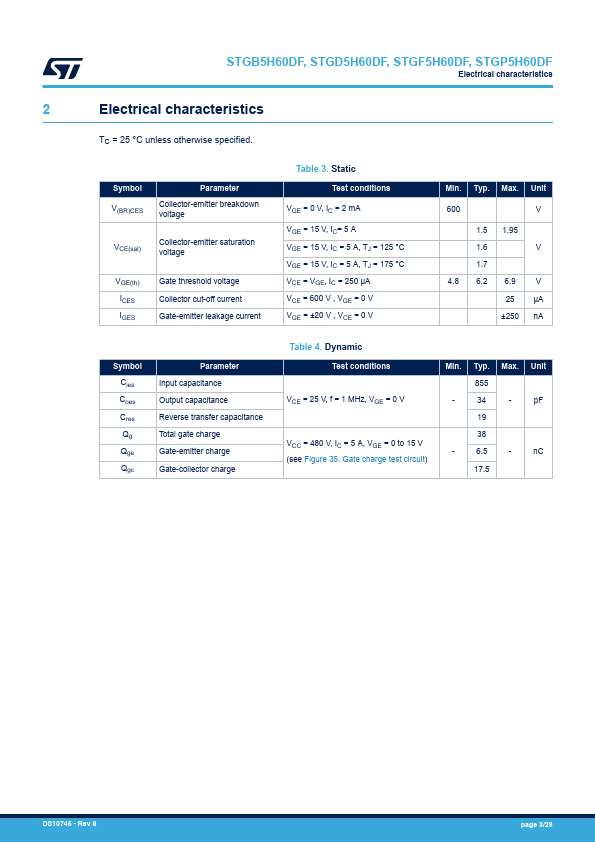

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STGF5H60DF, STGB5H60DF
Manufacturer
STMicroelectronics ↗
File Size
3.33 MB
Datasheet
STGB5H60DF-STMicroelectronics.pdf
Description
600V 5A IGBT
Note
This datasheet PDF includes multiple part numbers: STGF5H60DF, STGB5H60DF.
Please refer to the document for exact specifications by model.
