STGIB10CH60TS-XZ - IGBT

STMicroelectronics

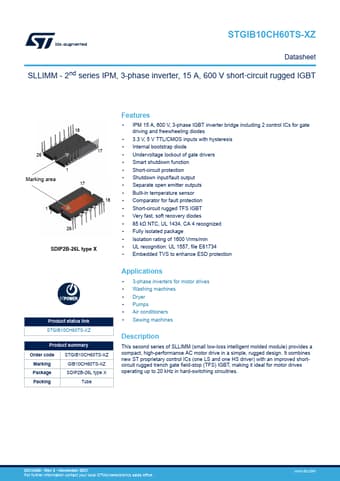

STGIB10CH60TS-XZ Datasheet Preview — Preview of STGIB10CH60TS-XZ PDF

Datasheet Details

Part number	STGIB10CH60TS-XZ
Manufacturer	STMicroelectronics ↗
File Size	2.91 MB
Description	IGBT
Datasheet	STGIB10CH60TS-XZ-STMicroelectronics.pdf

STGIB10CH60TS-XZ Product details

Description

This second series of SLLIMM (small low-loss intelligent molded module) provides a compact, high-performance AC motor drive in a simple, rugged design.

Features

IPM 15 A, 600 V, 3-phase IGBT inverter bridge including 2 control ICs for gate driving and freewheeling diodes.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Internal bootstrap diode.
Undervoltage lockout of gate drivers.
Smart shutdown function.
Short-circuit protection.
Shutdown input/fault output.
Separate open emitter outputs.
Built-in temperature sensor.
Comparator for fault protection.
Short-c.
