STGP19NC60K

20 A - 600 V - short circuit rugged IGBT

STGP19NC60K Features

* Low www.DataSheet4U.com

* Low

* on-voltage drop (VCE(sat)) Cres / Cies ratio (no cross conduction susceptibility) Short circuit withstand time 10 µs IGBT co-packaged with ultra fast free-wheeling diode 3 1 2 3 1 TO-220 D2PAK Applications

* High frequency inverter

STGP19NC60K General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB19NC60K GP19NC60K Package D2PAK TO-220 Packaging Tape and reel Tube Order codes ST.

STGP19NC60K Datasheet (562.51 KB)

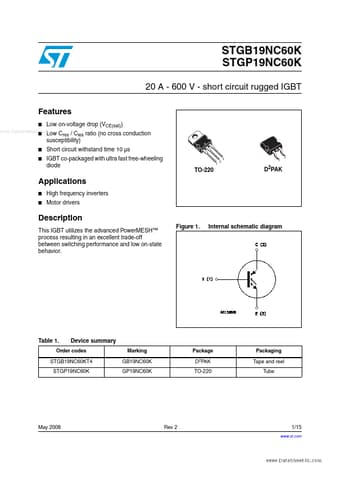

Preview of STGP19NC60K PDF

Datasheet Details

Part number:

STGP19NC60K

Manufacturer:

STMicroelectronics ↗

File Size:

562.51 KB

Description:

20 a - 600 v - short circuit rugged igbt.
