STGP19NC60SD, STGF19NC60SD - 600 V fast IGBT

STMicroelectronics

📥 Download Datasheet

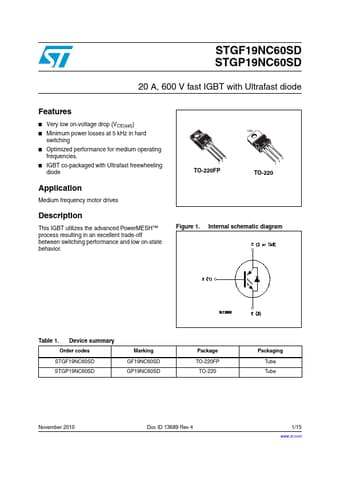

STGP19NC60SD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP19NC60SD, STGF19NC60SD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGP19NC60SD, STGF19NC60SD
Manufacturer	STMicroelectronics
File Size	300.22 KB
Description	600 V fast IGBT
Datasheet	STGF19NC60SD-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STGP19NC60SD, STGF19NC60SD. Please refer to the document for exact specifications by model.

STGP19NC60SD Product details

Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

Features

Very low on-voltage drop (VCE(sat)).
Minimum power losses at 5 kHz in hard switching.
Optimized performance for medium operating frequencies.
IGBT co-packaged with Ultrafast freewheeling diode.
