STGP19NC60KD Datasheet, Igbt, STMicroelectronics

STGP19NC60KD Features

  • Igbt
  • Low on-voltage drop (VCE(sat))
  • Low Cres / Cies ratio (no cross conduction susceptibility)
  • Short circuit withstand time 10 µs
  • IGBT co-packaged wit

PDF File Details

Part number:

STGP19NC60KD

Manufacturer:

STMicroelectronics ↗

File Size:

1.03MB

Download:

📄 Datasheet

Description:

20 a - 600 v - short circuit rugged igbt. This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state

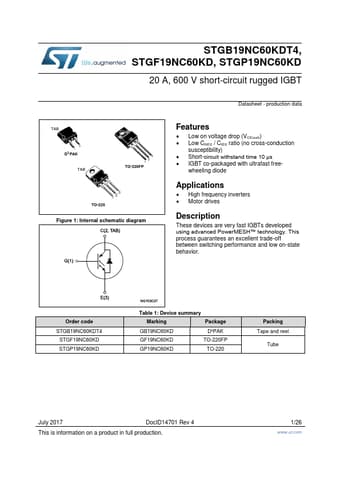

Datasheet Preview: STGP19NC60KD 📥 Download PDF (1.03MB)
Page 2 of STGP19NC60KD Page 3 of STGP19NC60KD

STGP19NC60KD Application

  • Applications
  • High frequency inverters
  • Motor drivers Description This IGBT utilizes the advanced PowerMESH™ process resulting in
