STGP19NC60W Datasheet, Igbt, STMicroelectronics

STGP19NC60W Features

  • Igbt
  • High frequency operation
  • Low CRES / CIES ratio (no cross-conduction susceptibility) Applications
  • High frequency motor controls, inverters, UPS
  • HF

PDF File Details

Part number:

STGP19NC60W

Manufacturer:

STMicroelectronics ↗

File Size:

391.10kb

Download:

📄 Datasheet

Description:

19 a - 600 v - ultra fast igbt. This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state

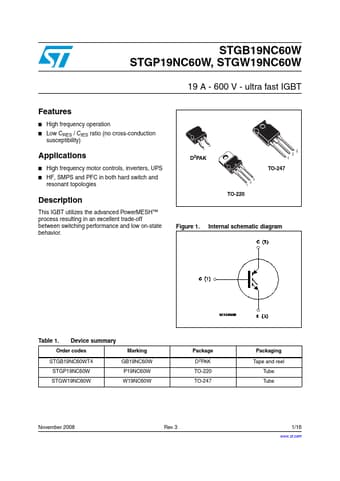

Datasheet Preview: STGP19NC60W 📥 Download PDF (391.10kb)
Page 2 of STGP19NC60W Page 3 of STGP19NC60W

STGP19NC60W Application

  • Applications
  • High frequency motor controls, inverters, UPS
  • HF, SMPS and PFC in both hard switch and resonant topologies Descript
