STGP6M65DF2 IGBT

STMicroelectronics

STGP6M65DF2 Description

STGP6M65DF2 Trench gate field-stop IGBT, M series 650 V, 6 A low loss Datasheet - production data Figure 1: Internal schematic diagram .
This device is an IGBT developed using an advanced proprietary trench gate field-stop structure.

STGP6M65DF2 Features

* 6 µs of short-circuit withstand time
* VCE(sat) = 1.55 V (typ. ) @ IC = 6 A
* Tight parameter distribution
* Safer paralleling
* Low thermal resistance

STGP6M65DF2 Applications

* Motor control
* UPS

📥 Download Datasheet

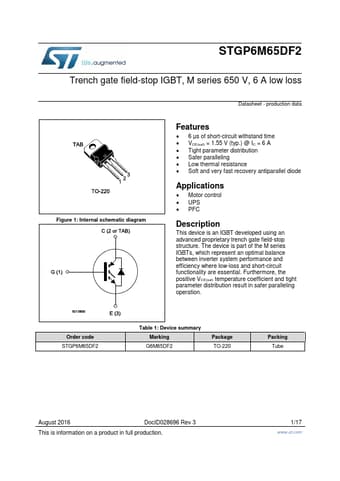

STGP6M65DF2 Datasheet Preview — Preview of STGP6M65DF2 PDF

Datasheet Details

Part number: STGP6M65DF2
Manufacturer: STMicroelectronics ↗
File Size: 788.80 KB
Datasheet: STGP6M65DF2-STMicroelectronics.pdf
Description: IGBT
