STH180N10F3-2

N-Channel Power MOSFET

STH180N10F3-2 Features

* Order code VDS STH180N10F3-2 100 V

* Ultra low on-resistence

* 100% avalanche tested RDS(on) max. 4.5 mΩ ID 180 A Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using STripFET F3 technology. It is designed to mini

STH180N10F3-2 General Description

This device is an N-channel Power MOSFET developed using STripFET F3 technology. It is designed to minimize on-resistance and gate charge to provide superior switching performance. S(2,3) NCHG1DTABS23 Product status link STH180N10F3-2 Product summary Order code STH180N10F3-2 Marking 180N10F3.

STH180N10F3-2 Datasheet (383.27 KB)

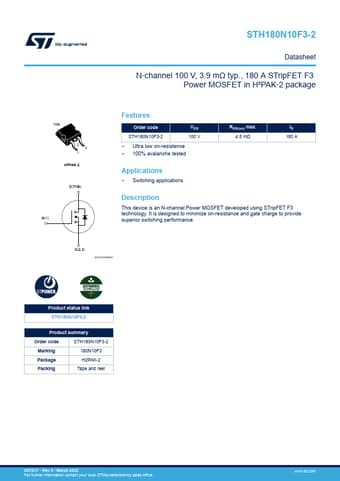

Preview of STH180N10F3-2 PDF

Datasheet Details

Part number:

STH180N10F3-2

Manufacturer:

STMicroelectronics ↗

File Size:

383.27 KB

Description:

N-channel power mosfet.
