STH52N10LF3-2AG Automotive-grade N-channel Power MOSFET

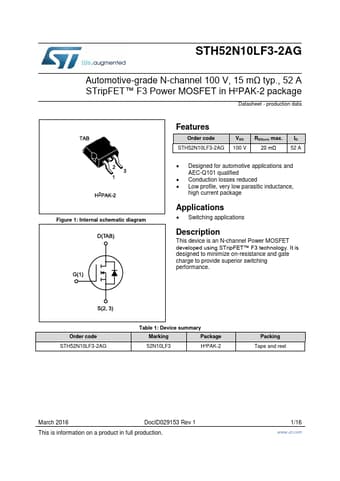

📥 Download Datasheet Datasheet Preview Page 1

Description

STH52N10LF3-2AG Automotive-grade N-channel 100 V, 15 mΩ typ., 52 A STripFET™ F3 Power MOSFET in H²PAK-2 package Datasheet - production data Figure 1.
This device is an N-channel Power MOSFET developed using STripFET™ F3 technology.

📥 Download Datasheet

Preview of STH52N10LF3-2AG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code STH52N10LF3-2AG VDS 100 V RDS(on) max. 20 mΩ ID 52 A

Applications

* and AEC-Q101 qualified
* Conduction losses reduced
* Low profile, very low parasitic inductance, high current package Applications

STH52N10LF3-2AG Distributors
