STHU47N60DM6AG Datasheet - STMicroelectronics

STHU47N60DM6AG N-channel Power MOSFET

This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching beh.

STHU47N60DM6AG Features

* Order code STHU47N60DM6AG VDS 600 V RDS(on) max. 80 mΩ ID 36 A

* AEC-Q101 qualified

* Fast-recovery body diode

* Lower RDS(on) per area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely h

STHU47N60DM6AG Datasheet (664.58 KB)

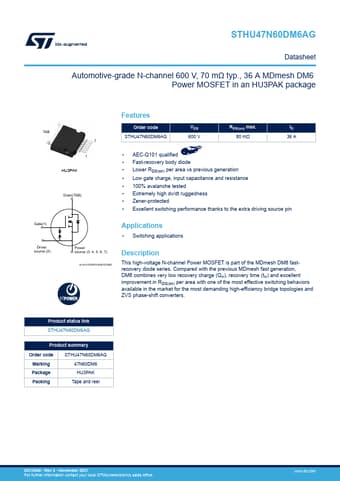

Preview of STHU47N60DM6AG PDF

Datasheet Details

Part number:

STHU47N60DM6AG

Manufacturer:

STMicroelectronics ↗

File Size:

664.58 KB

Description:

N-channel power mosfet.
