STI13NM60N Datasheet - STMicroelectronics

N-CHANNEL Power MOSFET

STI13NM60N Features

* 3 12 TO-220FP TAB 1 23 I2PAK TAB TO-220 1 23 3 12 IPAK Order codes VDS RDS(on) max. STF13NM60N STI13NM60N STP13NM60N 600 V 360 mΩ STU13NM60N

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance ID 11 A D(2, TAB) Applica

STI13NM60N General Description

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh technology. These revolutionary Power MOSFETs associate a vertical structure to the company’s strip layout to yield one of the world’s lowest onresistance and gate charge. They are therefore suitable for the mo.

STI13NM60N Datasheet (455.98 KB)

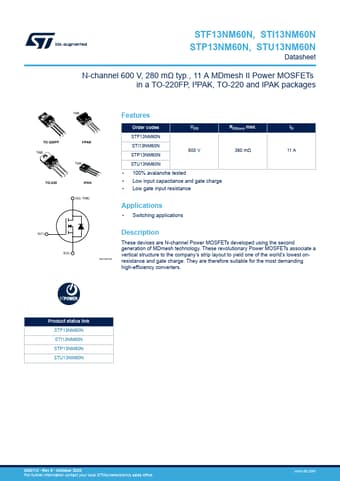

STI13NM60N Datasheet Preview — Preview of STI13NM60N PDF

Datasheet Details

Part number:

STI13NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

455.98 KB

Description:

N-channel power mosfet.
STF13NM60N, STI13NM60N STP13NM60N, STU13NM60N Datasheet N-channel 600 V, 280 mΩ typ., 11 A MDmesh II Power MOSFETs in a TO-220FP, I²PAK, TO-220 and IP.
