STI13005-1 Datasheet - STMicroelectronics

High voltage fast-switching NPN power transistor

STI13005-1 General Description

The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and high voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. Figure 1. Internal schematic diagram.

STI13005-1 Datasheet (213.80 KB)

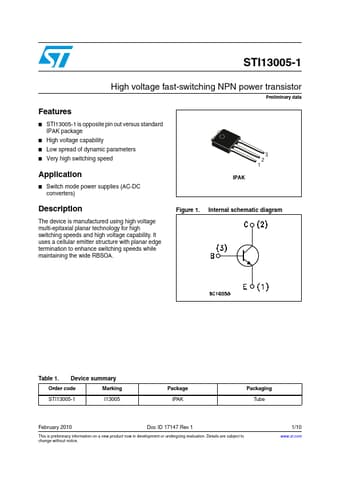

Preview of STI13005-1 PDF

Datasheet Details

Part number:

STI13005-1

Manufacturer:

STMicroelectronics ↗

File Size:

213.80 KB

Description:

High voltage fast-switching npn power transistor.
