STI300N4F6 - N-channel Power MOSFET

STMicroelectronics

The STI300N4F6 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STI300N4F6
Manufacturer	STMicroelectronics
File Size	367.28 KB
Description	N-channel Power MOSFET
Datasheet	STI300N4F6-STMicroelectronics.pdf

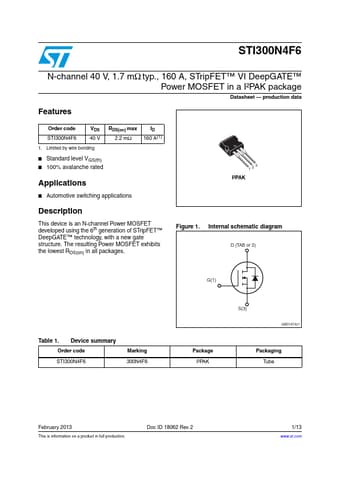

Additional preview pages of the STI300N4F6 datasheet.

This device is an N-channel Power MOSFET developed using the 6th generation of STripFET™ DeepGATE™ technology, with a new gate structure.

Order code STI300N4F6 VDS 40 V RDS(on) max ID 2.2 mΩ 160 A(1) 1. Limited by wire bonding.
Standard level VGS(th).
100% avalanche rated.
