STI3408B

1.2A Synchronous Step-Down Converter

STI3408B Features

* High Efficiency: Up to 96%

* 1.5MHz Constant Frequency Operation

* 1.2A Output Current

* No Schottky Diode Required

* 2.5V to 6.0V Input Voltage Range

* Output Voltage as Low as 0.6V

* 100% Duty Cycle in Dropout

* Low Quiescent Current: 40µ A

* Slope Compensated

STI3408B General Description

The STI3408B is a constant frequency, current mode PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that run.

STI3408B Datasheet (249.78 KB)

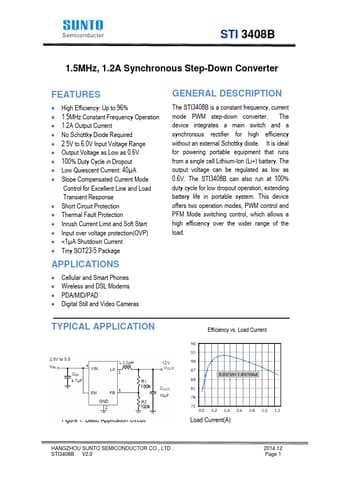

STI3408B Datasheet Preview — Preview of STI3408B PDF

Datasheet Details

Part number:

STI3408B

Manufacturer:

SUNTO

File Size:

249.78 KB

Description:

1.2a synchronous step-down converter.
