STI3472 - 2A Synchronous Step-Down Converter

Datasheet Summary

Description

The STI3472 is a fully integrated, high

efficiency 2.0A synchronous rectified step-down converter.

The STI3472 operates at high efficiency over a wide output current load range.

Features

  • High Efficiency: Up to 95%max.
  • 600KHz Frequency Operation.
  • 2.0A Output Current.
  • No Schottky Diode Required.
  • 3.5V to 18V Input Voltage Range.
  • 0.8V Reference.
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
  • Integrated internal compensation.
  • Stable with Low ESR Ceramic Output Capacitors.
  • Over Current Protection with Hiccup-Mode.
  • Input over voltage protection(OVP).
  • Thermal Shutdown.
  • Inrush Curren.

📥 Download Datasheet

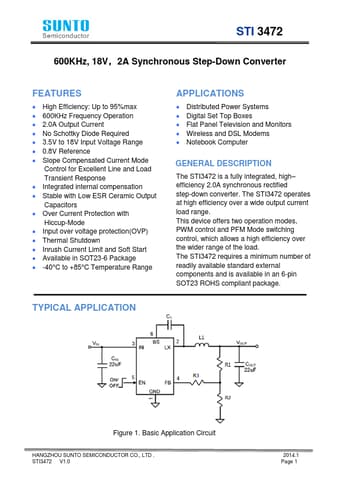

Datasheet preview – STI3472

Datasheet Details

Part number STI3472
Manufacturer SUNTO
File Size 263.41 KB
Description 2A Synchronous Step-Down Converter
Datasheet download datasheet STI3472 Datasheet
Additional preview pages of the STI3472 datasheet.
