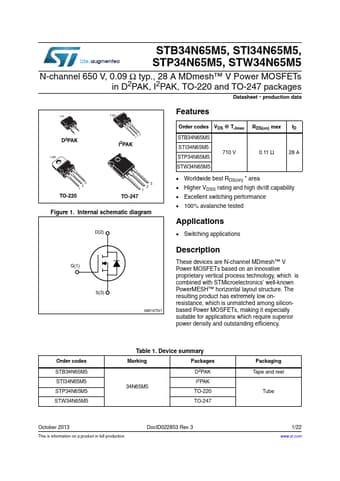

STI34N65M5 - N-channel Power MOSFET

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STI34N65M5 Features

* Order codes VDS @ TJmax STB34N65M5 STI34N65M5 STP34N65M5 710 V STW34N65M5 RDS(on) max 0.11 Ω ID 28 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications
