STI32N65M5

N-channel MOSFET

STI32N65M5 Features

* TAB 3 12 TO-220FP ) TAB t(s 3 c 2 TO-220 1 rodu D(2, TAB) lete P G(1) roduct(s) - Obso S(3) I2PAK 1 2 3 3 12 TO-247 Order codes VDS at Tjmax. RDS(on) max. ID STF32N65M5 STI32N65M5 STP32N65M5 710 V 119 mΩ 24 A STW32N65M5

* Extremely low RDS(on)

* Low gate charge and input

STI32N65M5 General Description

These devices are N-channel Power MOSFETs based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout. The resulting products offer extremely low on-resistance, making them particularly suitable for applications requiring high power and su.

STI32N65M5 Datasheet (817.05 KB)

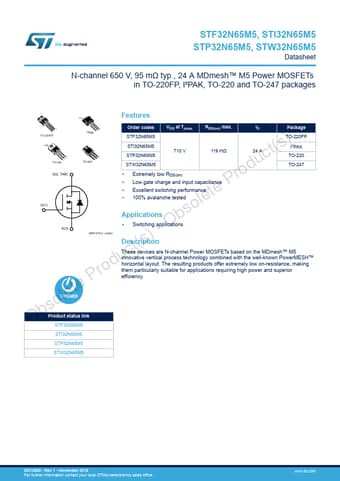

Preview of STI32N65M5 PDF

Datasheet Details

Part number:

STI32N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

817.05 KB

Description:

N-channel mosfet.
STF32N65M5, STI32N65M5 STP32N65M5, STW32N65M5 Datasheet N-channel 650 V, 95 mΩ typ., 24 A MDmesh™ M5 Power MOSFETs in TO-220FP, I²PAK, TO-220 and TO-2.
