STI30NM60ND

N-channel Power MOSFET

STI30NM60ND Features

* Type www.DataSheet4U.com VDSS 600V 600V 600V 600V 600V RDS(on) Max < 0.13Ω < 0.13Ω < 0.13Ω < 0.13Ω < 0.13Ω ID 25A 25A 25A(1) 25A 25A 3 3 1 2 STB30NM60ND STI30NM60ND STF30NM60ND STP30NM60ND STW30NM60ND 3 1 2 1 TO-220 D2PAK TO-220FP 1. Limited only by maximum temperature allowed

STI30NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.It is the.

STI30NM60ND Datasheet (773.00 KB)

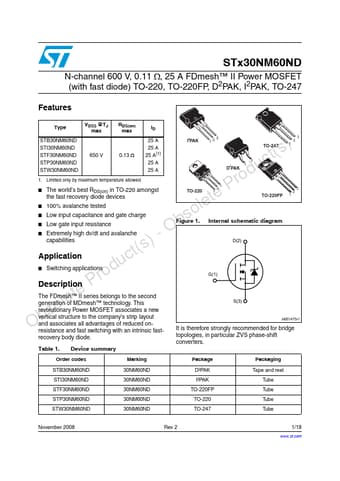

Preview of STI30NM60ND PDF

Datasheet Details

Part number:

STI30NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

773.00 KB

Description:

N-channel power mosfet.
STP/F30NM60ND-STW30NM60ND STB30NM60ND-STI30NM60ND N-channel 600V - 0.11Ω - 25A TO-220/FP/D2PAK/I2PAK/TO-247 FDmesh™ II Power MOSFET (with fast diode) .
