STI3408 - 1.0A Synchronous Step-Down Converter

Datasheet Summary

Description

The STI3408 is a constant frequency, current mode PWM step-down converter.

The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode.

Features

  • High Efficiency: Up to 96%.
  • 1.5MHz Constant Frequency Operation.
  • 1.0A Output Current.
  • No Schottky Diode Required.
  • 2.5V to 6.0V Input Voltage Range.
  • Output Voltage as Low as 0.6V.
  • 100% Duty Cycle in Dropout.
  • Low Quiescent Current: 20µA.
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
  • Short Circuit Protection.
  • Thermal Fault Protection.
  • Inrush Current Limit and Soft Start.

📥 Download Datasheet

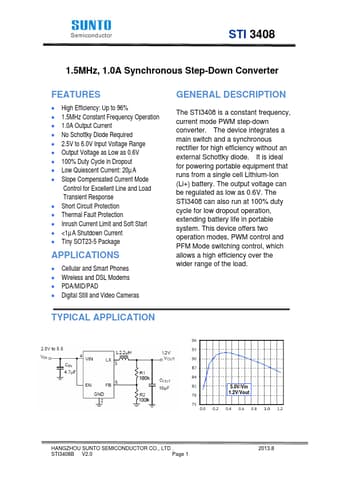

Datasheet preview – STI3408

Datasheet Details

Part number STI3408
Manufacturer SUNTO
File Size 157.23 KB
Description 1.0A Synchronous Step-Down Converter
