STI30NM60N

N-channel MOSFET

STI30NM60N Features

* Type STB30NM60N STI30NM60N STF30NM60N STP30NM60N STW30NM60N VDSS @ TJmax 650 V 650 V 650 V 650 V 650 V RDS(on) max

STI30NM60N General Description

This series of devices is designed using the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest onresistance and gate charge. It is therefore suitable for the most demanding hig.

STI30NM60N Datasheet (791.59 KB)

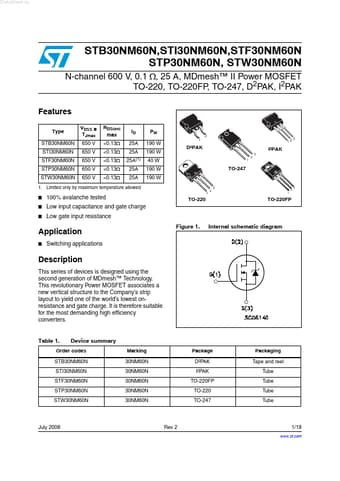

Preview of STI30NM60N PDF

Datasheet Details

Part number:

STI30NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

791.59 KB

Description:

N-channel mosfet.
DataSheet.in STB30NM60N,STI30NM60N,STF30NM60N STP30NM60N, STW30NM60N N-channel 600 V, 0.1 Ω, 25 A, MDmesh™ II Power MOSFET TO-220, TO-220FP, TO-247, .
