STIPN2M50-H

MOSFET

STIPN2M50-H Features

* IPM 2 A, 500 V, RDS(on) = 1.7 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving

* Optimized for low electromagnetic interference

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down/ pull-up resistors

* Undervoltage lock

STIPN2M50-H General Description

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six MOSFETs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized swit.

STIPN2M50-H Datasheet (0.95 MB)

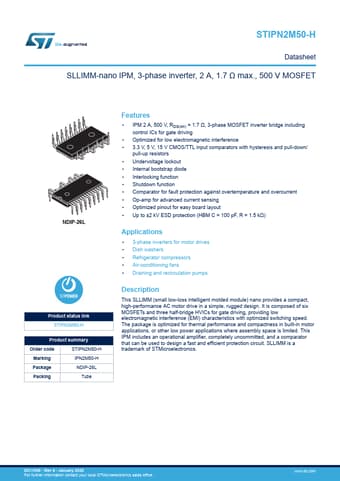

Preview of STIPN2M50-H PDF

Datasheet Details

Part number:

STIPN2M50-H

Manufacturer:

STMicroelectronics ↗

File Size:

0.95 MB

Description:

Mosfet.
STIPN2M50-H Datasheet SLLIMM-nano IPM, 3-phase inverter, 2 A, 1.7 Ω max., 500 V MOSFET NDIP-26L Product status link STIPN2M50-H Product summary Or.
