STIPNS1M50T-H

MOSFET

STIPNS1M50T-H Features

* IPM 1 A, 500 V, RDS(on) = 3.6 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving

* Optimized for low electromagnetic interference

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down/ pull-up resistors

* Undervoltage lock

STIPNS1M50T-H General Description

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six MOSFETs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized swit.

STIPNS1M50T-H Datasheet (1.48 MB)

Preview of STIPNS1M50T-H PDF

Datasheet Details

Part number:

STIPNS1M50T-H

Manufacturer:

STMicroelectronics ↗

File Size:

1.48 MB

Description:

Mosfet.

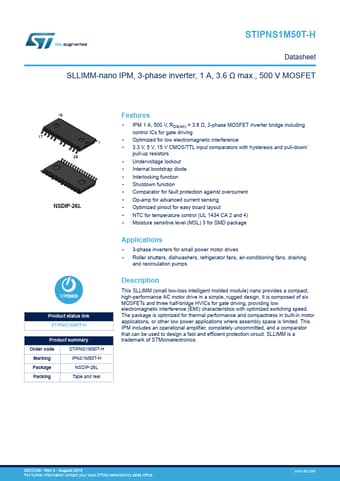

STIPNS1M50T-H Datasheet SLLIMM-nano IPM, 3-phase inverter, 1 A, 3.6 Ω max., 500 V MOSFET 16 17 1 26 NSDIP-26L Product status link STIPNS1M50T-H Pro.
