STIPNS2M50T-H MOSFET

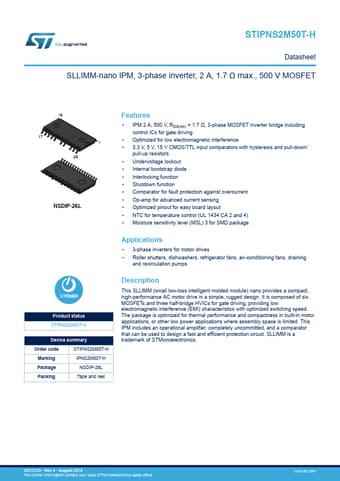

📥 Download Datasheet Datasheet Preview Page 1

Description

STIPNS2M50T-H Datasheet SLLIMM-nano IPM, 3-phase inverter, 2 A, 1.7 Ω max., 500 V MOSFET 16 17 1 26 NSDIP-26L Product status STIPNS2M50T-H Device s.
This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design.

📥 Download Datasheet

Preview of STIPNS2M50T-H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* IPM 2 A, 500 V, RDS(on) = 1.7 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving
* Optimized for low electromagnetic interference
* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down/ pull-up resistors
* Undervoltage lock

Applications

* 3-phase inverters for motor drives
