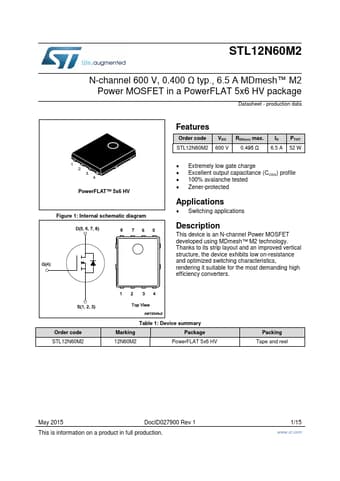

STL12N60M2 Datasheet, Mosfet, STMicroelectronics

STL12N60M2 Features

• Mosfet Order code STL12N60M2 VDS 600 V RDS(on) max. 0.495 Ω ID 6.5 A PTOT 52 W
• Extremely low gate charge
• Excellent output capacitance (COSS) profile
• 100% av

PDF File Details

Part number:

STL12N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

360.37kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical s

STL12N60M2 Application

• Applications
• Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to
