STL12N65M2 Datasheet, Mosfet, STMicroelectronics

STL12N65M2 Features

  • Mosfet Order code VDS RDS(on) max. ID PTOT STL12N65M2 650 V 0.75 Ω 5 A 48 W
  • Extremely low gate charge
  • Excellent output capacitance (COSS) profile
  • 100% ava

PDF File Details

Part number:

STL12N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

359.28kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical s

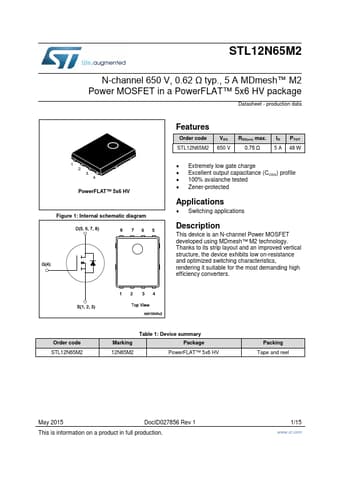

Datasheet Preview: STL12N65M2 📥 Download PDF (359.28kb)
Page 2 of STL12N65M2 Page 3 of STL12N65M2

STL12N65M2 Application

  • Applications
  • Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to
