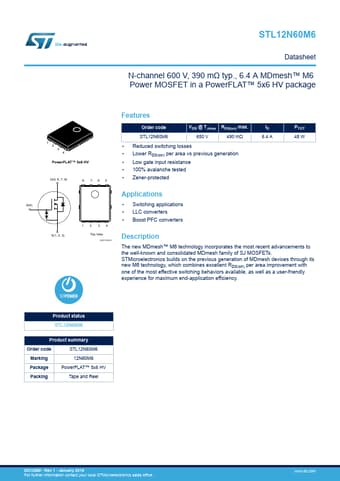

STL12N60M6 Datasheet, Mosfet, STMicroelectronics

STL12N60M6 Features

• Mosfet Order code VDS @ TJmax RDS(on) max. STL12N60M6 650 V 490 mΩ
• Reduced switching losses
• Lower RDS(on) per area vs previous generation
• Low gate input res

PDF File Details

Part number:

STL12N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

775.96kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFET

STL12N60M6 Application

• Applications G(4)
• Switching applications
• LLC converters
• Boost PFC converters 12 34 S(1, 2, 3) Top View AM15540v1 D
