STL12N65M5 N-channel Power MOSFET

STL12N65M5 Description

STL12N65M5 N-channel 650 V, 0.475 Ω typ., 8.5 A MDmesh™ V Power MOSFET in a PowerFLAT™ 5x6 HV package Datasheet * production data .
This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelec.

STL12N65M5 Features

* 1 2 3 4 PowerFLATTM 5x6 HV Figure 1. Internal schematic diagram '
*  6  $0Y Order code STL12N65M5 VDSS 710 V RDS(on) max 0.530 Ω ID 8.5 A
* Outstanding RDS(on)
* area
* Extremely large avalanche performance
* Gate charge minimized
* Very low

📥 Download Datasheet

Preview of STL12N65M5 PDF

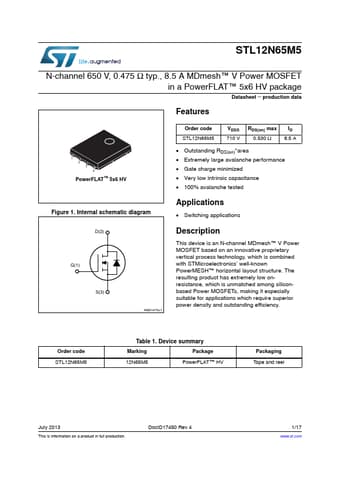

datasheet Preview Page 2 datasheet Preview Page 3
