STL16N65M2 - N-channel Power MOSFET

STMicroelectronics

Datasheet Details

Part number	STL16N65M2
Manufacturer	STMicroelectronics ↗
File Size	504.01 KB
Description	N-channel Power MOSFET
Datasheet	STL16N65M2-STMicroelectronics.pdf

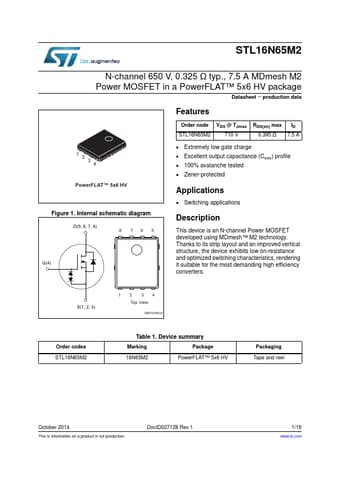

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

1234 PowerFLAT™ 5x6 HV Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) Order code VDS @ TJmax RDS(on) max ID STL16N65M2 710 V 0.395 Ω 7.5 A.
Extremely low gate charge.
Excellent output capacitance (Coss) profile.
100% avalanche tested.
Zener-protected.
