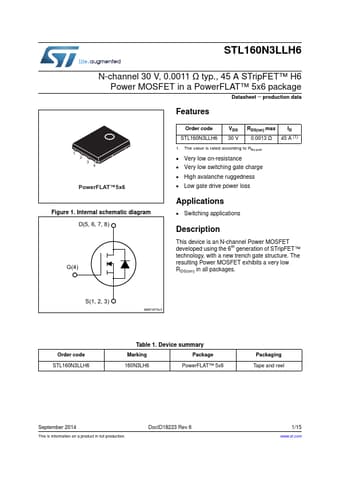

Preview of STL160N3LLH6 PDF
STL160N3LLH6 Datasheet Preview Page 2 STL160N3LLH6 Datasheet Preview Page 3

Datasheet Details

Part number:

STL160N3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

1.12 MB

Description:

N-channel power mosfet.

STL160N3LLH6, N-channel Power MOSFET

This device is an N-channel Power MOSFET developed using the 6th generation of STripFET™ DeepGATE™ technology, with a new gate structure.

The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.

1 2 3 4 PowerFLAT™ 5x6 Figure 1.

Internal schematic diagram    $$$$ '333

STL160N3LLH6 Features

* Order code STL160N3LLH6 VDSS 30 V RDS(on) max 0.0013 Ω ID 35 A (1) 1. The value is rated according Rthj-pcb

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* Very low switching gate charge

* High avalanche ruggedness

* Low gate drive power losses
