STL160N10F8 Datasheet, Mosfet, STMicroelectronics

STL160N10F8 Features

  • Mosfet Order code STL160N10F8 VDS 100 V RDS(on) max. 3.2 mΩ ID 158 A PowerFLAT 5x6
  • MSL1 grade
  • 175 °C maximum operating junction temperature
  • 100% avalanche t

PDF File Details

Part number:

STL160N10F8

Manufacturer:

STMicroelectronics ↗

File Size:

936.55kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The STL160N10F8 is a 100 V N-channel enhancement mode Power MOSFET designed in STripFET F8 technology featuring an enhanced trench ga

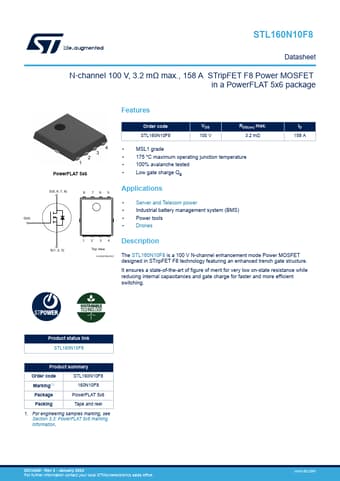

Datasheet Preview: STL160N10F8 📥 Download PDF (936.55kb)
Page 2 of STL160N10F8 Page 3 of STL160N10F8

STL160N10F8 Application

  • Applications 8 76 5
  • Server and Telecom power
  • Industrial battery management system (BMS) G(4)
  • Power tools
