STL16N1VH5

N-channel Power MOSFET

STL16N1VH5 Features

* Order code VDSS RDS(on) max ID STL16N1VH5 12 V 0.003 Ω 16 A (1) t(s)1. The value is rated according Rthj-pcb c

* Improved die-to-footprint ratio u

* Very low profile package (1mm max) rod

* Very low thermal resistance P

* Very low gate charge te

* Very low on-resistance le

STL16N1VH5 General Description

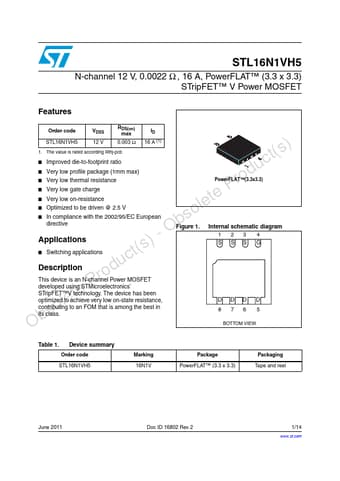

roThis device is an N-channel Power MOSFET Pdeveloped using STMicroelectronics’ teSTripFET™V technology. The device has been leoptimized to achieve very low on-state resistance, contributing to an FOM that is among the best in Obsoits class. PowerFLAT™(3.3x3.3) Figure 1. Internal schematic diagra.

STL16N1VH5 Datasheet (423.81 KB)

Preview of STL16N1VH5 PDF

Datasheet Details

Part number:

STL16N1VH5

Manufacturer:

STMicroelectronics ↗

File Size:

423.81 KB

Description:

N-channel power mosfet.
