STL160N4F7 Datasheet, Mosfet, STMicroelectronics

STL160N4F7 Features

  • Mosfet Order code V DS RDS(on) max STL160N4F7 40 V 2.5 mΩ
  • Among the lowest RDS(on) on the market
  • Excellent FoM (figure of merit)
  • Low Crss/Ciss ratio for EM

PDF File Details

Part number:

STL160N4F7

Manufacturer:

STMicroelectronics ↗

File Size:

856.38kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate struc

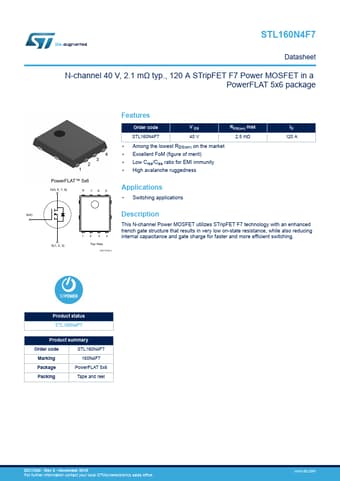

Datasheet Preview: STL160N4F7 📥 Download PDF (856.38kb)
Page 2 of STL160N4F7 Page 3 of STL160N4F7

STL160N4F7 Application

  • Applications
  • Switching applications G(4) Description S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFE
