STL160NS3LLH7

N-channel Power MOSFET

STMicroelectronics

STL160NS3LLH7 Features

* 1 2 3 4 PowerFLAT™5x6 Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 Order code STL160NS3LLH7 VDS 30 V RDS(on) max ID 0.0021 Ω 160 A

* Very low on-resistance

* Very low Qg

* High avalanche ruggedness

* Embedded Schottky diode Applications

STL160NS3LLH7 General Description

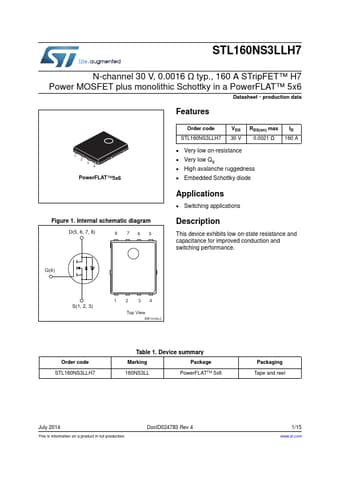

This device exhibits low on-state resistance and capacitance for improved conduction and switching performance. G(4) S(1, 2, 3) 12 34 Top View AM15540v3 Order code STL160NS3LLH7 Table 1. Device summary Marking Package 160NS3LL PowerFLATTM 5x6 Packaging Tape and reel July 2014 This is info.

STL160NS3LLH7 Datasheet (499.78 KB)

STL160NS3LLH7 Datasheet Preview — Preview of STL160NS3LLH7 PDF

Datasheet Details

Part number:

STL160NS3LLH7

Manufacturer:

STMicroelectronics ↗

File Size:

499.78 KB

Description:

N-channel power mosfet.
STL160NS3LLH7 N-channel 30 V, 0.0016 Ω typ., 160 A STripFET™ H7 Power MOSFET plus monolithic Schottky in a PowerFLAT™ 5x6 Datasheet - production data.
