STL34N65M5 N-channel Power MOSFET

This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbased.

STL34N65M5 Features

* Order code STL34N65M5 VDS @ TJmax 710 V RDS(on) max 0.120 Ω ID 22.5 A(1) 1. The value is rated according to Rthj-case and limited by package.

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Figure 1. Internal schematic diagra

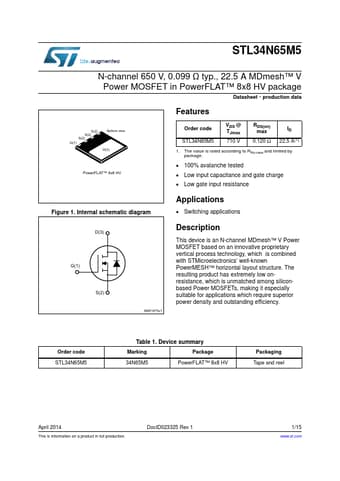

STL34N65M5 Datasheet (1.05 MB)
