STL36DN6F7 Datasheet - STMicroelectronics

Dual N-channel Power MOSFET

STL36DN6F7 General Description

This dual N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STL36DN6F7 Marking 36DN6F7 Table 1: De.

STL36DN6F7 Datasheet (754.53 KB)

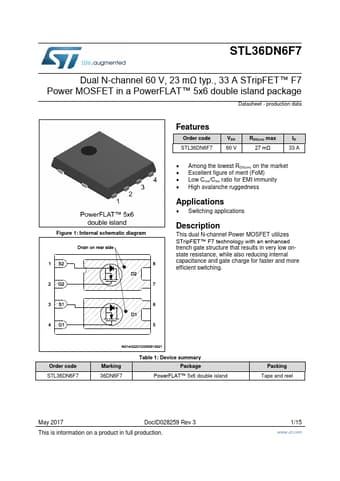

STL36DN6F7 Datasheet Preview — Preview of STL36DN6F7 PDF

Datasheet Details

Part number:

STL36DN6F7

Manufacturer:

STMicroelectronics ↗

File Size:

754.53 KB

Description:

Dual n-channel power mosfet.
STL36DN6F7 Dual N-channel 60 V, 23 mΩ typ., 33 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 double island package Datasheet - production data Fig.
