STL36N60M6

N-CHANNEL POWER MOSFET

STMicroelectronics

STL36N60M6 Features

* Order code VDS RDS(on) max. ID STL36N60M6 600 V 110 mΩ 25 A

* Reduced switching losses

* Lower RDS(on) x area vs previous generation

* Low gate input resistance

* 100% avalanche tested

* Zener-protected

* Excellent switching performance thanks

STL36N60M6 General Description

The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one.

STL36N60M6 Datasheet (391.50 KB)

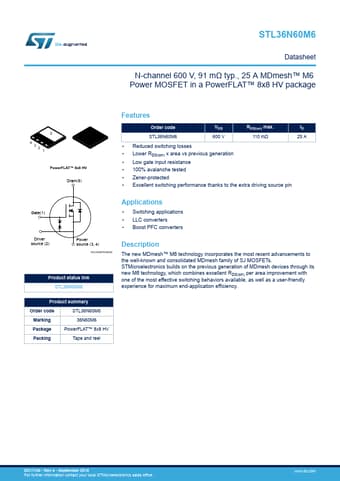

STL36N60M6 Datasheet Preview — Preview of STL36N60M6 PDF

Datasheet Details

Part number:

STL36N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

391.50 KB

Description:

N-channel power mosfet.
STL36N60M6 Datasheet N-channel 600 V, 91 mΩ typ., 25 A MDmesh™ M6 Power MOSFET in a PowerFLAT™ 8x8 HV package 5 432 1 PowerFLAT™ 8x8 HV Drain(5) Fea.
