STL38DN6F7AG Datasheet - STMicroelectronics

Automotive-grade N-channel Power MOSFET

STL38DN6F7AG Features

* Order code VDS RDS(on) max. ID STL38DN6F7AG 60 V 27 mΩ 10 A

* AEC-Q101 qualified

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Swit

STL38DN6F7AG General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. NG14G22D1D2RSS13S21 Product status STL38DN6F7AG Device.

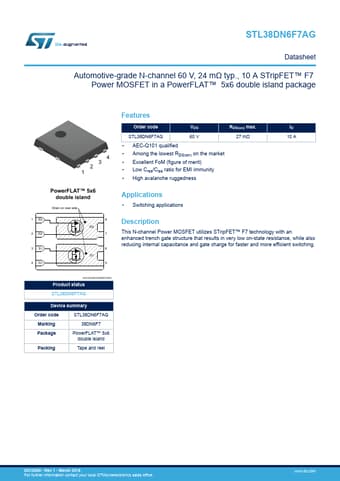

STL38DN6F7AG Datasheet (703.61 KB)

STL38DN6F7AG Datasheet Preview — Preview of STL38DN6F7AG PDF

Datasheet Details

Part number:

STL38DN6F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

703.61 KB

Description:

Automotive-grade n-channel power mosfet.
STL38DN6F7AG Datasheet Automotive-grade N-channel 60 V, 24 mΩ typ., 10 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 double island package 1 S2 Dr.
