STL38N65M5

N-channel Power MOSFET

STL38N65M5 Features

* Order code STL38N65M5 VDS @ TJmax 710 V RDS(on) max. 0.105 Ω ID 22.5 A

* Extremely low RDS(on)

* Low gate charge and input capacitance

* Excellent switching performance

* 100% avalanche tested Applications

* Switching applications Description This device is an N-channel Powe

STL38N65M5 General Description

This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the wellknown PowerMESH™ horizontal layout. The resulting product offers extremely low onresistance, making it particularly suitable for applications requiring high power and superio.

STL38N65M5 Datasheet (749.14 KB)

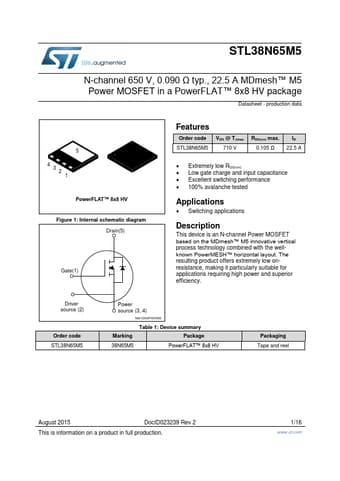

Preview of STL38N65M5 PDF

Datasheet Details

Part number:

STL38N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

749.14 KB

Description:

N-channel power mosfet.
STL38N65M5 N-channel 650 V, 0.090 Ω typ., 22.5 A MDmesh™ M5 Power MOSFET in a PowerFLAT™ 8x8 HV package Datasheet - production data 5 4 32 1 PowerFL.
