STL72

MEDIUM VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

STMicroelectronics

STL72 General Description

The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and medium voltage capability. It uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The STL series is designed for use .

STL72 Datasheet (179.24 KB)

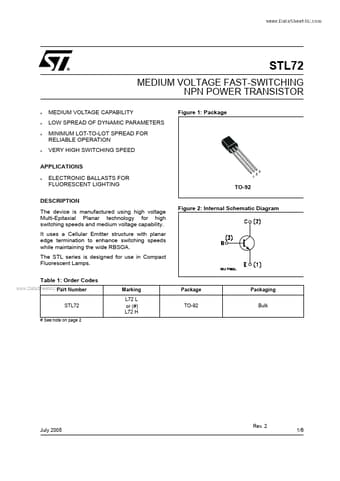

STL72 Datasheet Preview — Preview of STL72 PDF

Datasheet Details

Part number:

STL72

Manufacturer:

STMicroelectronics ↗

File Size:

179.24 KB

Description:

Medium voltage fast-switching npn power transistor.
STL72 MEDIUM VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR n n n MEDIUM VOLTAGE CAPABILITY LOW SPREAD OF DYNAMIC PARAMETERS MINIMUM LOT-TO-LOT SPREAD F.
