STL73

MEDIUM VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

STMicroelectronics

STL73 General Description

The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and medium voltage capability. It uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The STL series is designed for use .

STL73 Datasheet (138.64 KB)

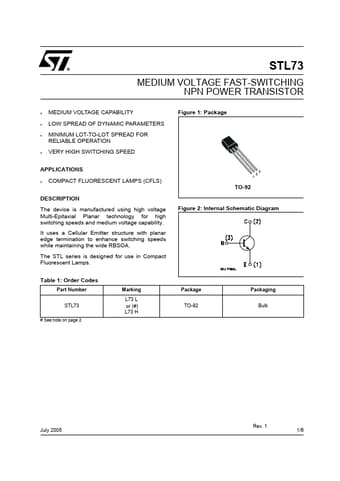

STL73 Datasheet Preview — Preview of STL73 PDF

Datasheet Details

Part number:

STL73

Manufacturer:

STMicroelectronics ↗

File Size:

138.64 KB

Description:

Medium voltage fast-switching npn power transistor.
STL73 MEDIUM VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR n MEDIUM VOLTAGE CAPABILITY n LOW SPREAD OF DYNAMIC PARAMETERS n MINIMUM LOT-TO-LOT SPREAD F.
