Part number: STL75N3LLZH5
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 535.66KB
Download: 📄 Datasheet
Description: Power MOSFETs

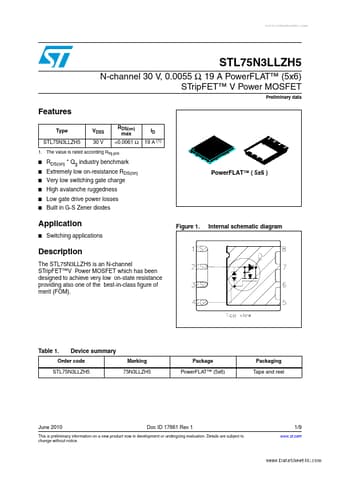

Type STL75N3LLZH5 VDSS 30 V RDS(on) max <0.0061 Ω ID 19 A (1)
1. The value is rated according Rthj-pcb
*
*
*
*
*
*
RDS(on) * Qg industry benchma.
Description
The STL75N3LLZH5 is an N-channel STripFET™V Power MOSFET which has been designed to achieve very low on-sta.
The STL75N3LLZH5 is an N-channel STripFET™V Power MOSFET which has been designed to achieve very low on-state resistance providing also one of the best-in-class figure of merit (FOM).
Table 1.
Device summary
Marking 75N3LLZH5 Package PowerFLAT™ (5x.
