STL70N4LLF5 - N-channel Power MOSFET

STMicroelectronics

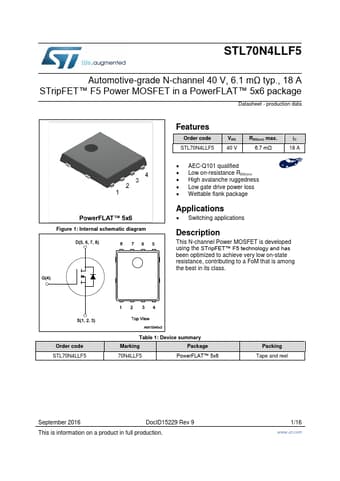

STL70N4LLF5 Datasheet Preview — Preview of STL70N4LLF5 PDF

Datasheet Details

Part number	STL70N4LLF5
Manufacturer	STMicroelectronics ↗
File Size	835.41 KB
Description	N-channel Power MOSFET
Datasheet	STL70N4LLF5-STMicroelectronics.pdf

STL70N4LLF5 Product details

Description

This product utilizes the 5th generation of design rules of ST’s proprietary STripFET™ technology. Qg, in this chip scale package, makes this device suitable for the most demanding DC-DC converter applications, where high power density is to be achieved.

Features

STL70N4LLF5 N-channel 40 V, 0.0055 Ω, 18 A, PowerFLAT™ (6x5) STripFET™ V Power MOSFET Preliminary Data Type STL70N4LLF5 VDSS 40 V RDS(on) max 0.0065 Ω ID 18 A (1) 1. The value is rated according Rthj-pcb.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
High avalanche ruggedness.
Low gate drive power losses.
